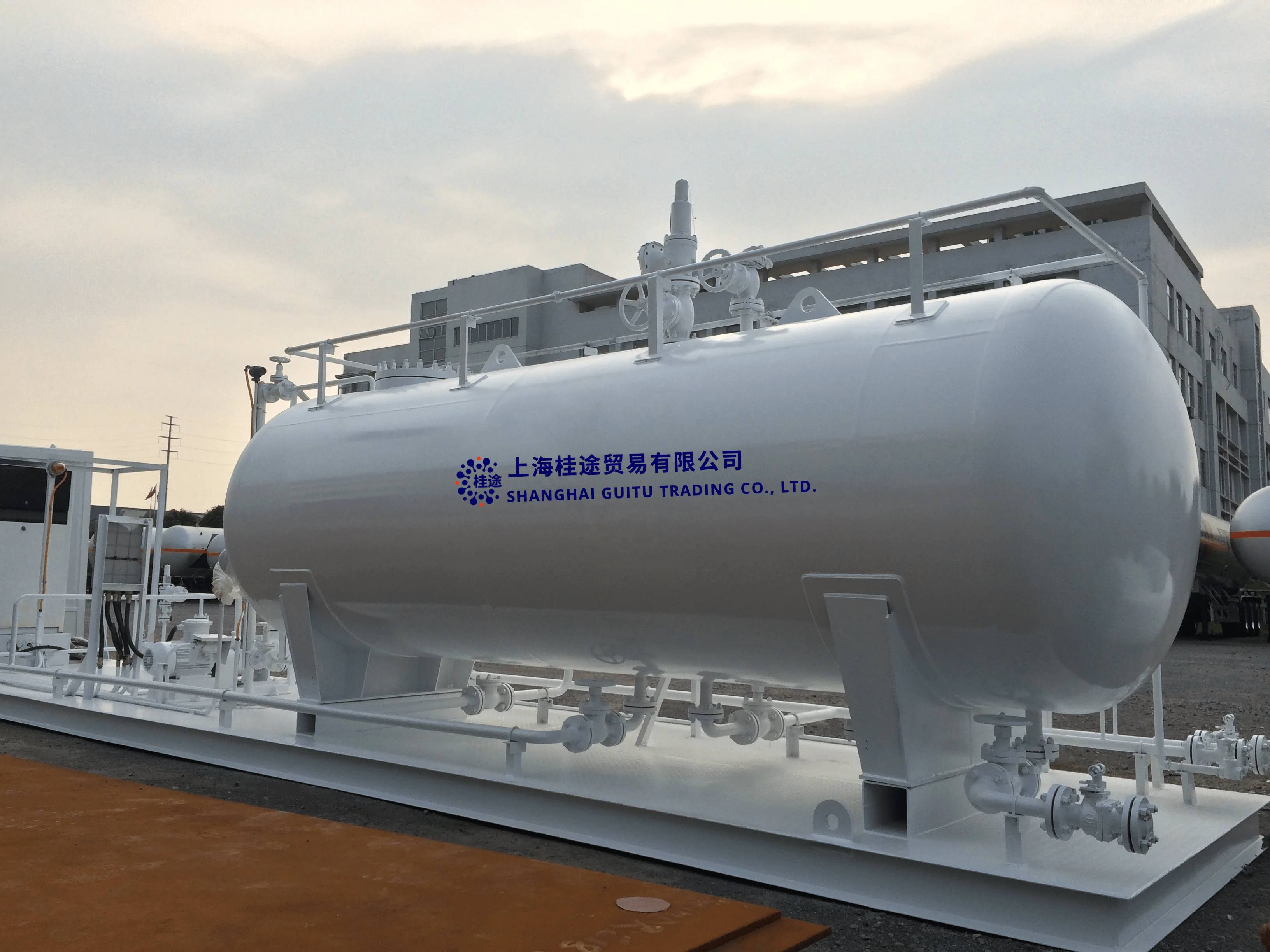

LPG Filling Skid
Integrated Solution for Safe and Efficient LPG Storage, Transfer, and Refilling
The LPG Filling Skid offered by Shanghai Guitu Trading Co., Ltd. is a modular, pre-assembled system designed for complete LPG handling operations—including storage, loading, unloading, refilling, and dispensing. This compact and fully integrated unit is ideal for mobile refueling stations, remote gas distribution, and on-site cylinder filling operations.
Designed for flexibility and fast deployment, the skid-mounted unit is factory-assembled, tested, and ready for use upon delivery, significantly reducing on-site installation time and safety risks.
System Overview
The LPG Skid Unit integrates the following components:

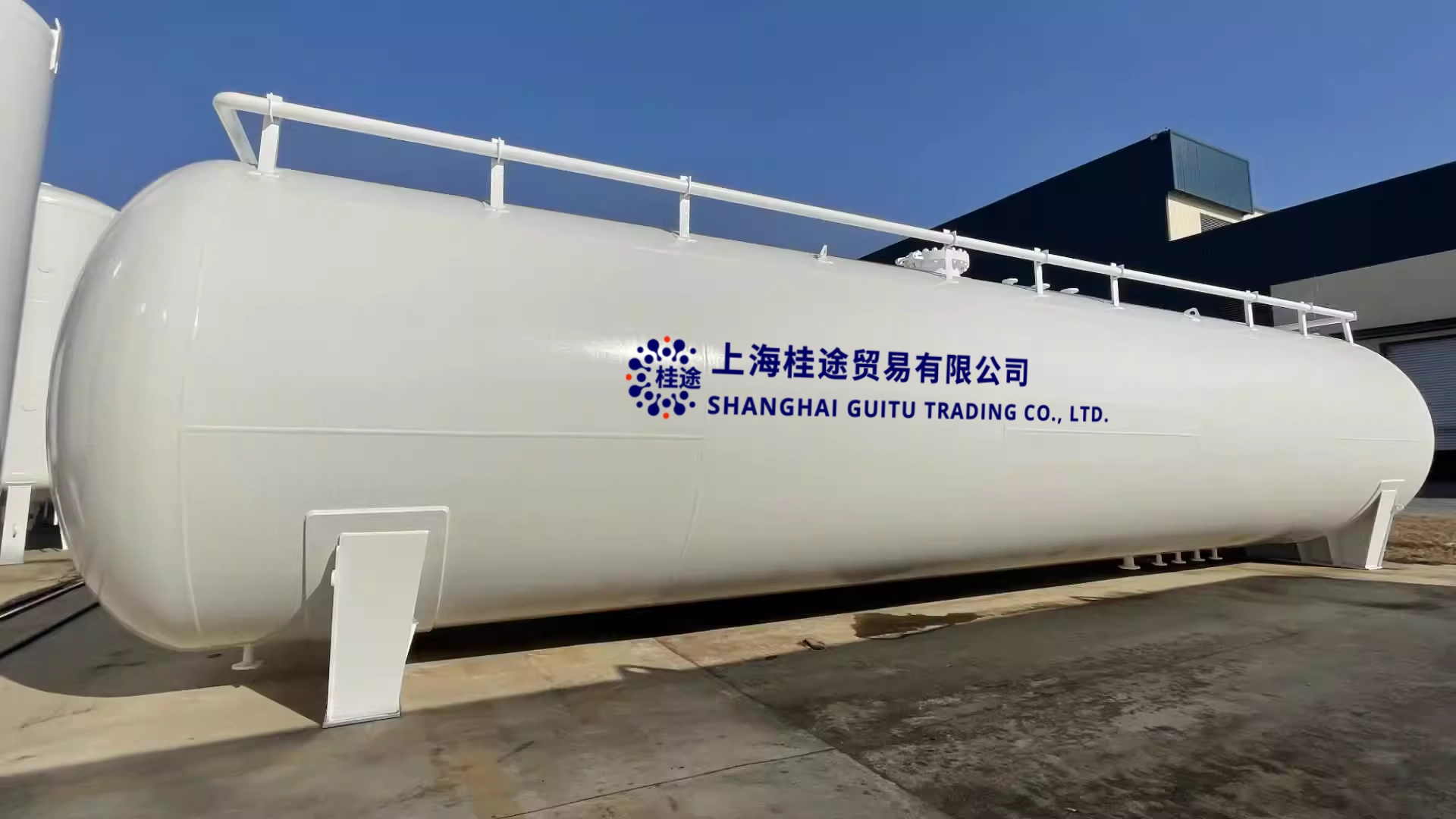

• LPG Storage Tank (various capacities available)
• LPG Pumping System for transfer and filling
• Piping System for safe liquid and vapor flow
• Filling Equipment (cylinder filling scale or dispenser with metering)
• Control System with safety interlocks and automation
• Emergency Shut-off Valves and leak detection
• Optional Spray System for fire suppression and cooling
Each system is serializable, engineered for containerized transport, and customizable based on operational requirements.
Technical Highlights
Key Features:
|
Tank Capacity |
5 m³ – 50 m³ (custom sizes available) |
|
Design Pressure |
Up to 1.77 MPa |
|
Pump Type |
Gear pump or centrifugal pump for LPG |
|
Filling Equipment |
Digital filling scale or flowmeter-based dispenser |
|
Power Supply |
Electric motor with explosion-proof rating |
|
Transportability |
Skid-mounted, suitable for container loading |
|
Certification |
Compliant with GB, ASME, and relevant safety standards |
Applications
-
Cylinder refilling stations
-
Rural and off-grid LPG supply systems
-
Temporary LPG distribution points
-
Emergency fuel supply units
-
Small-scale LPG bottling plants
Advantages
- Fully Integrated: All major components pre-installed and tested before delivery
- Mobile and Modular: Easily relocated and installed at any location with minimal civil work
- Safe Operation: Includes pressure relief, emergency shutdown, grounding system, and monitoring instruments
- Fast Deployment: Plug-and-play solution with minimal on-site commissioning
- Custom Configurations: Adaptable to specific client requirements and local regulations
Customization Available
Let us help you design the right LPG skid unit for your operation—whether for permanent installation or mobile refueling services.
