LPG Storage Tank
Reliable and Safe Storage Solutions for Liquefied Petroleum Gas
Shanghai Guitu Trading Co., Ltd is a trusted provider of high-quality LPG Spherical Storage Tanks, engineered for safe and efficient storage of liquefied petroleum gas (LPG) under high pressure. Designed to meet international safety standards, our spherical tanks are widely used in LPG terminals, refineries, and industrial gas distribution facilities across China and overseas markets.

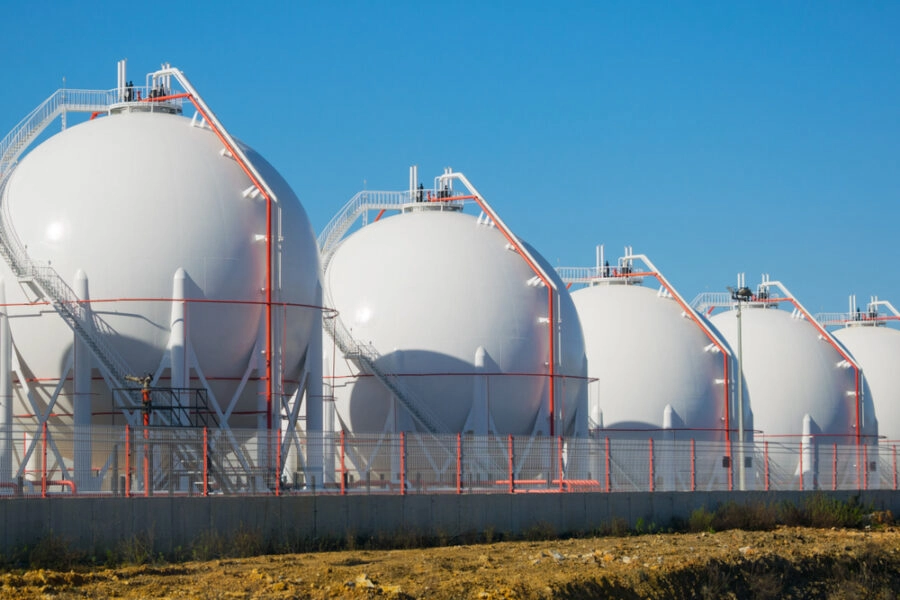

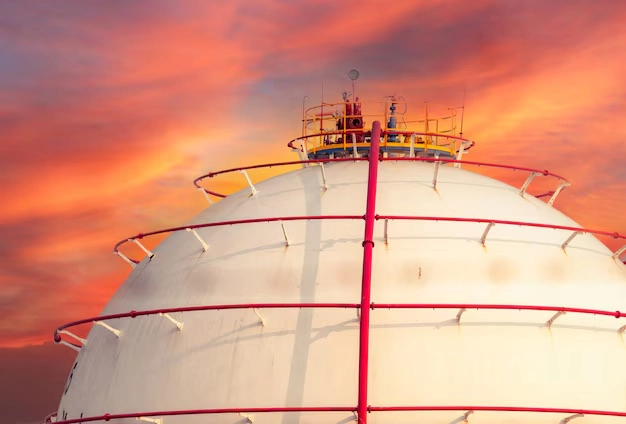

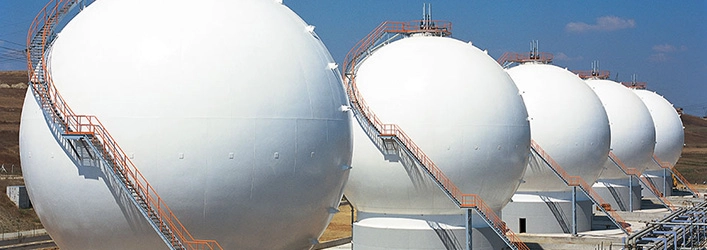

LPG Spherical Storage
Our LPG Spherical Storage Tanks are fabricated from premium-grade steel and are ideal for storing large volumes of LPG in a compact footprint. The spherical shape allows for uniform stress distribution, excellent seismic resistance, and higher safety compared to cylindrical tanks.
Key Features:
-
Capacity Range: 100m³ – 5000m³ (custom sizes available)
-
Working Pressure: Up to 1.77 MPa
-
Design Standards: ASME, GB150, API620, or customized as per client requirements
-
Material: Carbon steel or alloy steel (Q345R, 16MnDR, etc.)
-
Corrosion Protection: External coating and internal anti-corrosion treatment
-
Accessories: Safety valves, manways, level indicators, temperature sensors, etc.
-
Installation: On-site erection or modular prefabricated delivery
Applications
• LPG refilling stations
• Petrochemical plants
• Industrial fuel supply systems
• Seaport fuel terminals
• National energy storage infrastructure

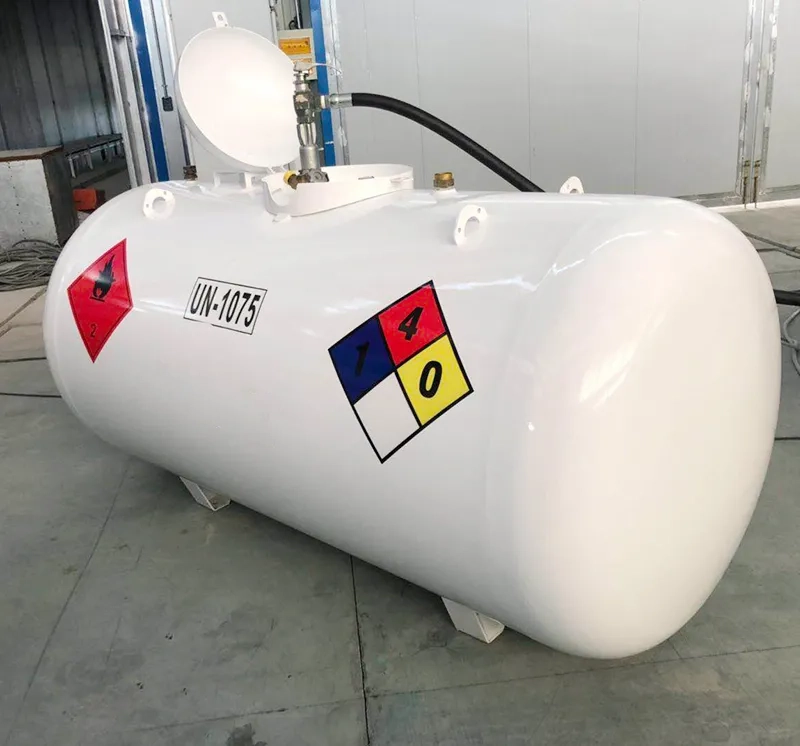

Small Capacity LPG Storage
The Small Capacity LPG Storage Tank is a fixed, single-layer pressure vessel specifically engineered for the safe storage of liquefied petroleum gas (LPG). Designed for small-scale applications such as industrial, commercial, or residential LPG systems, this tank combines compact design with robust performance.
Constructed using high-quality low-alloy pressure vessel steel, it offers excellent mechanical strength, corrosion resistance, and long-term durability under high pressure. The tank is fully equipped with safety and operational accessories, including valves and connectors that are compatible with LPG tanker trucks equipped with pumps and unloading guns.
Why Choose Us?
• In-House Manufacturing: We control quality from raw materials to final assembly.
• Certified & Tested: Tanks are rigorously pressure-tested and certified by Chinese and international inspection bodies.
• Engineering Support: We provide design, installation guidance, and after-sales technical support.
• Fast Delivery: Efficient production and logistics for domestic and overseas shipments.
Customization Available
We can design LPG storage tanks tailored to your project’s technical requirements, available in vertical or horizontal mounting options, with optional skid-mounted systems for mobile use.
